Automated Rubric Improvement

Use LLM-driven feedback loops to iteratively refine rubrics until they meet quality standards.

The Scenario

You're building an evaluation system for a new domain, but crafting high-quality rubrics from scratch is difficult. Your initial rubrics suffer from common problems: vague language, double-barreled criteria, and generic boilerplate that doesn't capture task-specific quality dimensions.

Rather than manually iterating through rubric revisions---evaluating, identifying issues, rewriting, and re-evaluating---you want to automate this refinement process. The system should:

1. Evaluate rubric quality using meta-rubrics
2. Extract actionable feedback from the evaluation
3. Use an LLM to revise the rubric based on that feedback
4. Repeat until no issues remain or a quality threshold is met

AutoRubric's improve_rubric() function and ImprovementRunner class automate this entire loop.

What You'll Learn

• How to improve rubrics with the improve_rubric() convenience function
• How to use ImprovementRunner for full control over the loop
• How to validate improvements with ground-truth data or multi-judge agreement
• How to write custom convergence functions
• How to inspect artifacts from the improvement process
• How to use building blocks for custom improvement pipelines

The Solution

The Improvement Loop

The automated improvement process follows a feedback loop with optional validation:

flowchart TD
    A[Initial Rubric] --> B[Evaluate with Meta-Rubric]
    B --> C[Extract Issues]
    C --> D{Converged?}
    D -->|Yes| E[Final Rubric]
    D -->|No| F[Validate Agreement/Ground-Truth]
    F --> G[Pareto Check]
    G -->|Accepted| H[LLM Revises Rubric]
    G -->|Rejected| H
    H --> B

    style A fill:#e8f4f8,stroke:#5dade2
    style E fill:#d5f5e3,stroke:#58d68d
    style H fill:#fdebd0,stroke:#f5b041

Step 1: Define the Flawed Initial Rubric

Start with a rubric that exhibits common anti-patterns. In practice, this might be a first draft or a rubric borrowed from a similar domain:

from autorubric import Rubric

initial_rubric = Rubric.from_dict([
    {
        "weight": 10,
        "requirement": "The response is well-written, accurate, and demonstrates creativity",
    },
    {
        "weight": 8,
        "requirement": "The response shows good understanding of the topic",
    },
    {
        "weight": 6,
        "requirement": "The response may include some relevant examples if appropriate",
    },
    {
        "weight": 5,
        "requirement": "The response is of high quality",
    },
    {
        "weight": 7,
        "requirement": "Writing quality is acceptable and the text flows well",
    },
])

This rubric has several anti-patterns: double-barreled criteria, vague wording ("good"), hedging language ("may"), generic boilerplate ("high quality"), and overlapping criteria.

Step 2: Improve with improve_rubric()

The simplest way to improve a rubric is the improve_rubric() convenience function. It handles the entire loop---evaluation, issue extraction, validation, revision, and convergence detection:

import asyncio
from autorubric import LLMConfig
from autorubric.meta import improve_rubric

eval_llm = LLMConfig(
    model="gemini/gemini-2.5-flash",
    temperature=0.0,
    thinking="medium",
    max_parallel_requests=10,
)

revision_llm = LLMConfig(
    model="gemini/gemini-2.5-pro",
    temperature=0.3,
    thinking="medium",
)

task_prompt = (
    "Write a comprehensive analysis of the environmental impact of electric "
    "vehicles compared to traditional gasoline vehicles. Include discussion "
    "of manufacturing, operation, and end-of-life considerations."
)

async def main():
    result = await improve_rubric(
        initial_rubric,
        task_prompt,
        eval_llm=eval_llm,
        revision_llm=revision_llm,
        show_progress=True,
        artifacts_dir="ev_rubric_improvement",
    )

    print(f"Quality: {result.iterations[0].quality_score:.0%} -> "
          f"{result.iterations[result.best_iteration].quality_score:.0%}")
    print(f"Issues: {len(result.iterations[0].issues)} -> "
          f"{len(result.iterations[result.best_iteration].issues)}")
    print(f"Converged: {result.convergence_reason}")
    print(f"Cost: ${result.total_completion_cost:.4f}")

asyncio.run(main())

The function uses in_context mode by default, evaluating the rubric against the task prompt. It stops when no issues remain, quality thresholds are met, a score plateau is detected, or max iterations are reached.

Step 3: Use ImprovementRunner for Full Control

For more control, use ImprovementRunner with an ImprovementConfig:

from autorubric.meta import ImprovementRunner, ImprovementConfig

config = ImprovementConfig(
    eval_llm=eval_llm,
    revision_llm=revision_llm,
    mode="in_context",
    max_iterations=10,
    min_quality_score=0.95,
    score_plateau_threshold=0.02,
    plateau_patience=2,
    history_window=3,
    save_artifacts=True,
    artifacts_dir="ev_rubric_improvement",
    show_progress=True,
)

async def main():
    runner = ImprovementRunner(initial_rubric, task_prompt, config=config)
    result = await runner.run()

    # Access the best rubric
    print(f"Best iteration: {result.best_iteration}")
    for c in result.best_rubric.rubric:
        print(f"  [{c.weight:+}] {c.requirement}")

asyncio.run(main())

ImprovementConfig exposes all tuning knobs:

Parameter	Default	Purpose
max_iterations	10	Cap on improvement cycles
min_quality_score	0.95	Stop when quality exceeds this
min_agreement	0.85	Stop when validation agreement exceeds this
score_plateau_threshold	0.02	Minimum score delta to avoid plateau
plateau_patience	2	Plateau iterations before stopping
history_window	3	Recent iterations included in revision prompt
reject_agreement_regression	True	Reject revisions that decrease validation reliability
max_total_cost	None	Budget cap in USD

Step 4: Add Validation Data

Without validation data, the loop optimizes only for meta-rubric quality. Adding validation data ensures the rubric also produces reliable scores in practice. Two modes are supported:

Ground-Truth Validation

When items have ground_truth verdicts, the loop measures Spearman rank correlation between rubric scores and expected scores. Revisions that decrease correlation are rejected (Pareto constraint).

from autorubric.dataset import RubricDataset

validation_data = RubricDataset.from_file("validation_items.json")

result = await improve_rubric(
    initial_rubric,
    task_prompt,
    eval_llm=eval_llm,
    revision_llm=revision_llm,
    validation_data=validation_data,
)

for it in result.iterations:
    print(f"Iter {it.iteration}: quality={it.quality_score:.0%}, "
          f"correlation={it.agreement:.2f}")

Multi-Judge Validation

When items lack ground_truth, use an ensemble of judges to measure inter-judge agreement. This requires eval_llm to be a list[JudgeSpec] with at least 2 judges:

from autorubric.graders import JudgeSpec

judges = [
    JudgeSpec(
        llm_config=LLMConfig(model="openai/gpt-4.1-mini"),
        judge_id="gpt4-mini",
    ),
    JudgeSpec(
        llm_config=LLMConfig(model="gemini/gemini-2.5-flash"),
        judge_id="gemini-flash",
    ),
]

validation_data = RubricDataset.from_file("unlabeled_items.json")

result = await improve_rubric(
    initial_rubric,
    task_prompt,
    eval_llm=judges,
    revision_llm=revision_llm,
    validation_data=validation_data,
)

The revision prompt includes per-criterion agreement data, guiding the LLM to clarify criteria where judges disagree.

Even a Small Validation Set Helps

Providing as few as 5-10 items with ground-truth verdicts significantly improves the loop's ability to detect and fix rubric issues. The meta-rubric checks structural quality (clarity, specificity, overlap), but a validation set adds an objective behavioral signal: does the rubric actually rank responses correctly? That complementary signal catches problems that structural analysis alone misses.

Step 5: Custom Convergence Functions

The built-in convergence logic handles common cases. For custom stopping conditions, provide a convergence_fn:

from autorubric.meta import ConvergenceFn, IterationResult

def custom_convergence(
    current: IterationResult,
    history: list[IterationResult],
) -> str | None:
    """Stop when quality >= 90% and no anti-patterns remain."""
    has_antipatterns = any(i.is_antipattern for i in current.issues)

    if current.quality_score >= 0.90 and not has_antipatterns:
        return "quality_met_no_antipatterns"

    if len(history) >= 3:
        recent_scores = [h.quality_score for h in history[-3:]]
        if max(recent_scores) - min(recent_scores) < 0.01:
            return "scores_converged"

    return None  # Continue

result = await improve_rubric(
    initial_rubric,
    task_prompt,
    eval_llm=eval_llm,
    revision_llm=revision_llm,
    config=ImprovementConfig(
        eval_llm=eval_llm,
        revision_llm=revision_llm,
        convergence_fn=custom_convergence,
    ),
)

print(f"Stopped: {result.convergence_reason}")

When convergence_fn is provided, it replaces the built-in convergence logic entirely. Return a reason string to stop, or None to continue.

Step 6: Inspect Artifacts

When save_artifacts=True, the runner writes detailed artifacts to the artifacts directory:

ev_rubric_improvement/
  rubric-iter-00.json        # Criteria array for each iteration
  rubric-iter-01.json
  ...
  eval-iter-00.html          # Meta-rubric evaluation report per iteration
  eval-iter-01.html
  ...
  iter-00.json               # Rich per-iteration JSON (quality report, issues,
  iter-01.json               #   validation samples, revision prompts/response)
  ...
  improvement_report.html    # Consolidated HTML report across all iterations
  summary.json               # Full run metadata, config snapshot, per-iteration summary

The summary.json contains everything needed to analyze a run programmatically:

import json

with open("ev_rubric_improvement/summary.json", encoding="utf-8") as f:
    summary = json.load(f)

print(f"Convergence: {summary['convergence_reason']}")
print(f"Best iteration: {summary['best_iteration']}")
for it in summary["iterations_summary"]:
    print(f"  Iter {it['iteration']}: quality={it['quality_score']:.0%}, "
          f"issues={it['num_issues']}, cost=${it['completion_cost'] or 0:.4f}")

Step 7: Use the Improved Rubric

The result provides three rubric snapshots:

import json

result.original_rubric  # The input rubric
result.final_rubric     # The rubric from the last accepted iteration
result.best_rubric      # The rubric with the best combined quality + agreement

# Save the best rubric for use in production
criteria = [
    {"weight": c.weight, "requirement": c.requirement}
    for c in result.best_rubric.rubric
]
with open("improved_rubric.json", "w", encoding="utf-8") as f:
    json.dump(criteria, f, indent=2)

Step 8: Custom Prompts

Override the revision system prompt or user prompt template for domain-specific guidance:

config = ImprovementConfig(
    eval_llm=eval_llm,
    revision_llm=revision_llm,
    revision_system_prompt=(
        "You are a rubric design expert for scientific peer review evaluation. "
        "Criteria must be grounded in established review standards."
    ),
    revision_user_prompt_template="""Revise this rubric based on feedback.

## Task
{task_prompt}

## Current Criteria
{original_criteria}

## Issues
{issues_text}

## Validation Data
{validation_text}

## Recent History
{history_text}

Return ONLY a JSON array of criteria with "weight" and "requirement" fields.""",
)

The user prompt template must include the placeholders {task_prompt}, {original_criteria}, {issues_text}, {validation_text}, and {history_text}.

Building Blocks

For fully custom improvement pipelines, the module exports individual building blocks:

Function	Purpose
extract_issues(report)	Extract IssueDetail list from a meta-rubric evaluation report
diff_issues(prev, curr)	Track which issues were fixed and which were introduced
format_issues_for_prompt(issues)	Format issues into text for the revision prompt
format_agreement_for_prompt(per_criterion)	Format per-criterion agreement as a prompt section
format_ground_truth_for_prompt(corr, pairs)	Format ground-truth validation results as a prompt section
build_revision_history(iterations, window)	Format recent iteration history for the revision prompt
revise_rubric(rubric, task_prompt, issues, ...)	Revise a rubric via LLM
validate_agreement(rubric, samples, judges, ...)	Test inter-judge agreement
validate_ground_truth(rubric, data, expected, ...)	Grade items and compute Spearman rho
compute_expected_scores(validation_data)	Compute expected scores from ground-truth verdicts
pareto_accept(curr, prev, ...)	Check if a revision passes the Pareto constraint

Example Results

Running this pipeline on the flawed rubric above produces dramatic improvement:

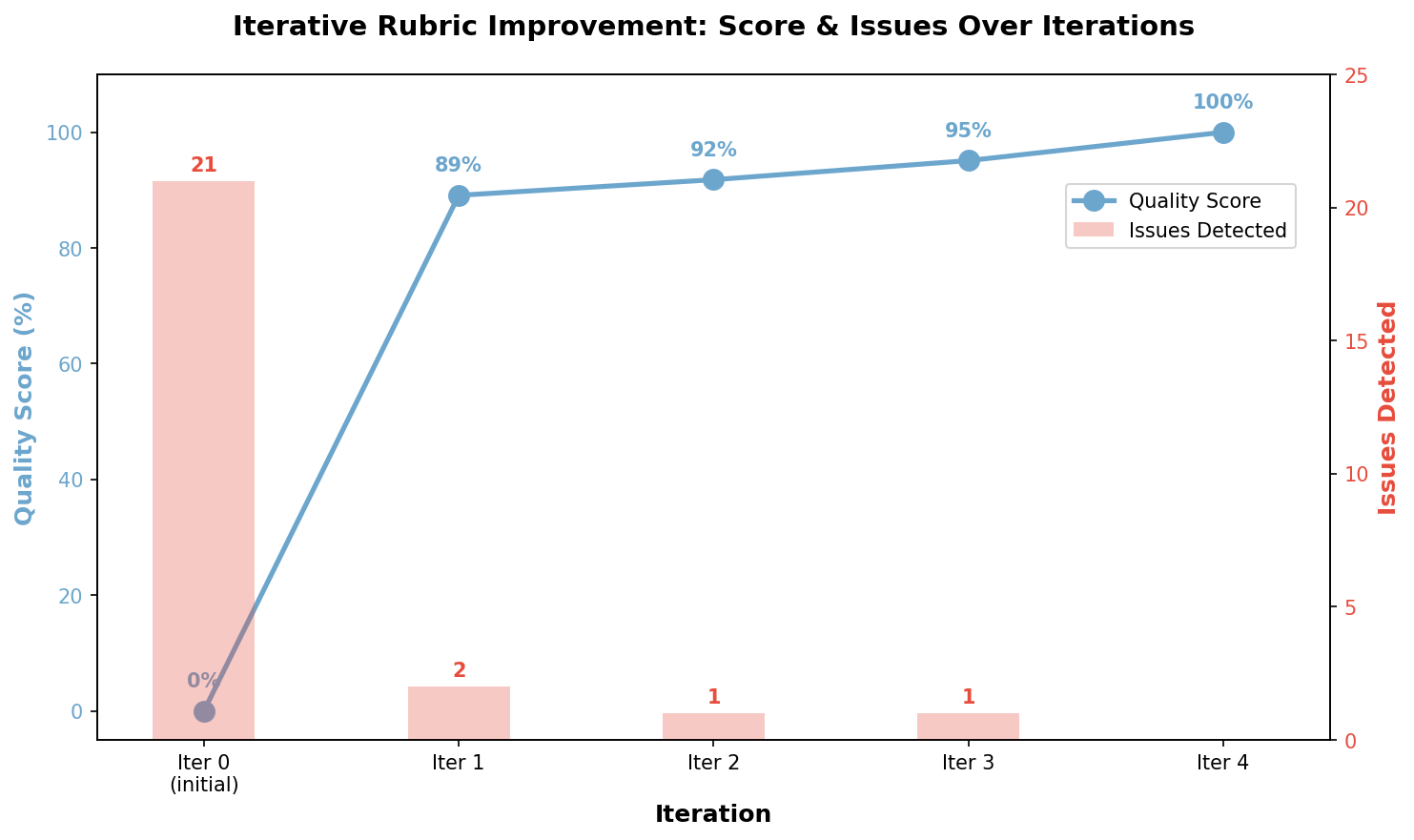

The chart shows how the quality score increases from 0% to 100% while detected issues drop from 21 to 0 over 5 iterations.

Iteration	Score	Issues	Key Changes
0 (Initial)	0%	21	Generic, vague, double-barreled criteria
1	89%	2	Task-specific criteria addressing manufacturing, operation, end-of-life
2	92%	1	Split compound criteria, clarified wording
3	95%	1	Improved comparative framing
4 (Final)	100%	0	Balanced weights, fully optimized

Qualitative Transformation

The table below shows how specific criteria evolved through the refinement process:

Aspect	Initial (Iteration 0)	Final (Iteration 4)
Manufacturing	Not addressed	"Compares the environmental impacts of manufacturing electric vehicle batteries with the manufacturing processes of gasoline vehicles"
Operation	Not addressed	"Contrasts the indirect emissions from electricity generation for EVs against the direct tailpipe emissions of gasoline vehicles"
End-of-Life	Not addressed	"Compares the environmental implications of EV battery disposal or recycling against the end-of-life processing of gasoline vehicles"
Writing Quality	"well-written, accurate, and demonstrates creativity" (double-barreled, vague)	"Organizes the content using specific headers for manufacturing, operation, and end-of-life phases" (specific, observable)
Overall Quality	"The response is of high quality" (circular, generic)	"Provides a concluding assessment that weighs the total environmental footprint of EVs against gasoline vehicles" (task-specific)

The transformation illustrates three key improvements:

1. Generic to task-specific: Criteria now directly address the EV analysis requirements
2. Vague to observable: "high quality" becomes measurable structural requirements
3. Compound to unidimensional: Multi-aspect criteria split into focused assessments

Key Takeaways

• Use improve_rubric() for the common case: It handles evaluation, revision, convergence detection, and artifact saving
• Use ImprovementRunner for full control: Configure all thresholds, convergence logic, and prompt overrides
• Add validation data: Ground-truth or multi-judge validation ensures the rubric produces reliable scores, not just high meta-rubric quality
• Use different models for different tasks: Fast models for evaluation (parallelizable), strong models for revision (complex reasoning)
• Inspect artifacts: The HTML reports and summary JSON provide full audit trails
• The Pareto constraint prevents regressions: Revisions that decrease validation reliability are rejected

Best Practices

Model Selection

Task	Recommended Model	Why
Evaluation	Fast model (Flash/Mini)	Many parallel criterion assessments
Revision	Strong model (Pro/4o)	Complex reasoning about rubric design

Convergence

The built-in convergence logic stops when:

1. No issues detected: All meta-rubric criteria pass
2. Thresholds met: Quality >= min_quality_score and agreement >= min_agreement
3. Max iterations reached: Prevents runaway loops (default 10)
4. Score plateau: Improvement < score_plateau_threshold for plateau_patience iterations
5. Pareto stuck: 3 consecutive revisions rejected for agreement regression
6. Cost limit: Total cost exceeds max_total_cost

Debugging Stuck Loops

If the loop doesn't converge:

1. Check iter-{NN}.json artifacts to see if the same issues keep reappearing
2. Look for conflicting meta-rubric criteria in the evaluation reports
3. Lower the revision LLM temperature for more deterministic outputs
4. Increase history_window to give the revision LLM more context about prior attempts
5. Provide a custom revision_system_prompt with domain-specific guidance

Going Further

• Evaluating Rubric Quality - Understanding meta-rubrics in depth
• Extended Thinking - Using thinking models for complex evaluations
• Configuration Management - Sharing optimized rubrics across teams

---

Appendix: Complete Code

See examples/rubric_improvement_demo.py for a complete, runnable implementation.

#!/usr/bin/env python3
"""Automated Rubric Improvement Demo

Iteratively refines a rubric using the built-in improve_rubric() API.
"""

import asyncio
import json

from autorubric import LLMConfig, Rubric
from autorubric.meta import improve_rubric


def create_flawed_rubric() -> Rubric:
    """Create a rubric with intentional quality issues."""
    return Rubric.from_dict([
        {
            "weight": 10,
            "requirement": (
                "The response is well-written, accurate, and demonstrates creativity"
            ),
        },
        {
            "weight": 8,
            "requirement": "The response shows good understanding of the topic",
        },
        {
            "weight": 6,
            "requirement": "The response may include relevant examples if appropriate",
        },
        {
            "weight": 5,
            "requirement": "The response is of high quality",
        },
        {
            "weight": 7,
            "requirement": "Writing quality is acceptable and the text flows well",
        },
    ])


async def main():
    eval_llm = LLMConfig(
        model="gemini/gemini-2.5-flash",
        temperature=0.0,
        thinking="medium",
        max_parallel_requests=10,
    )

    revision_llm = LLMConfig(
        model="gemini/gemini-2.5-pro",
        temperature=0.3,
        thinking="medium",
    )

    task_prompt = (
        "Write a comprehensive analysis of the environmental impact of electric "
        "vehicles compared to traditional gasoline vehicles. Include discussion "
        "of manufacturing, operation, and end-of-life considerations."
    )

    result = await improve_rubric(
        create_flawed_rubric(),
        task_prompt,
        eval_llm=eval_llm,
        revision_llm=revision_llm,
        show_progress=True,
        artifacts_dir="ev_rubric_improvement",
    )

    # Summary
    initial = result.iterations[0]
    best = result.iterations[result.best_iteration]
    print(f"\nQuality: {initial.quality_score:.0%} -> {best.quality_score:.0%}")
    print(f"Issues: {len(initial.issues)} -> {len(best.issues)}")
    print(f"Convergence: {result.convergence_reason}")
    if result.total_completion_cost:
        print(f"Total cost: ${result.total_completion_cost:.4f}")

    # Save improved rubric
    criteria = [
        {"weight": c.weight, "requirement": c.requirement}
        for c in result.best_rubric.rubric
    ]
    with open("improved_rubric.json", "w", encoding="utf-8") as f:
        json.dump(criteria, f, indent=2)


if __name__ == "__main__":
    asyncio.run(main())
